Scoring high on the AP Physics C: Electricity and Magnetism (E&M) Exam isn’t rare. In 2024, 35.2% of students earned a 5, and another 21.6% scored a 4. That’s over half of all test takers landing in the top score bands. Out of 27,967 students, 71.6% passed with a 3 or higher, and the average score was 3.53.
If you’re planning to take the exam, this guide will walk you through what to expect, how the test is structured, and what to focus on to boost your chances of joining that top-performing group.
- AP Physics C: Electricity and Magnetism Course and Exam Description
- AP Physics C: Electricity and Magnetism Exam Format
- AP Physics C: Electricity and Magnetism Exam Questions
- How to Study for the AP Physics C: Electricity and Magnetism Exam
- AP Physics C: Electricity and Magnetism Exam Test-Taking Tips
- AP Physics C: Electricity and Magnetism Exam Date
- Is the AP Physics C: Electricity and Magnetism Exam Hard?
- Frequently Asked Questions
- Takeaways
AP Physics C: Electricity and Magnetism Course and Exam Description
The AP Physics C: Electricity and Magnetism course is a college-level introduction to electricity and magnetism, taught with calculus. You’ll study how electric charges interact, how currents flow, and how magnetic fields behave using the fundamental laws of electromagnetism. Think Coulomb’s law, Gauss’s law, Ampère’s law, Faraday’s law, and more.
You’ll work through topics like electric fields, electric potential, DC circuits, capacitors, magnetic fields, and electromagnetic induction. These concepts help you understand how electric and magnetic systems behave, and how they apply to real devices like motors, transformers, and circuit components.
The course asks you to apply calculus when solving problems. That means you’ll be taking derivatives and integrals in the context of physical laws. You’ll also interpret graphs, draw field diagrams, and set up or analyze experimental data. Some units focus on theory and problem-solving, while others emphasize lab-based investigations and translating between mathematical and physical representations.
AP Physics C: Electricity and Magnetism is modeled after a one-semester, calculus-based college physics course. Most students take it during their junior or senior year, often after AP Physics C: Mechanics or alongside AP Calculus AB or BC. There are no official prerequisites, but a solid understanding of basic physics and comfort with calculus are highly recommended.
AP Physics C: Electricity and Magnetism Exam topics
The AP Physics C: Electricity and Magnetism Exam pulls questions from five major units. Each unit has its own weight on the exam, and some are heavier than others. Here’s how the test is generally structured:
| Unit | Topic | Weighting |
| 1 | Electrostatics | 26%–34% |
| 2 | Conductors, Capacitors, and Dielectrics | 14%–17% |
| 3 | Electric Circuits | 17%–23% |
| 4 | Magnetic Fields | 17%–23% |
| 5 | Electromagnetism | 14%–20% |
These percentages show how much of the exam focuses on each topic. Electrostatics and circuits make up a large chunk of the test, so you’ll need to be confident working with electric fields, potential, and current loops. Expect questions asking you to calculate electric force, analyze electric fields with Gauss’s law, or explain potential energy in a charge configuration.
Units on circuits, magnetism, and induction also appear frequently. You’ll apply calculus to analyze RC circuits, derive expressions using Faraday’s law, and explain how current-carrying wires create magnetic fields. Even the more conceptual topics, like dielectric materials or Lenz’s law, show up in both multiple-choice and free-response formats.
To do well, you need to move fluidly between math and physics—calculating, explaining, and reasoning your way through every type of electromagnetic system the exam can throw at you.
AP Physics C: Electricity and Magnetism Exam Format
The AP Physics C: Electricity and Magnetism Exam uses a hybrid format. You’ll take Section I (Multiple Choice) on the College Board’s Bluebook app, and you’ll write Section II (Free Response) by hand in a paper booklet.
The test is split into two main sections, each worth 50% of your total score:
Section I – Multiple Choice
- 40 questions
- 80 minutes
- 50% of your score
These questions cover every unit in the course, with a mix of stand-alone and grouped data questions. They test your understanding of physics concepts, your ability to apply calculus, and your skill in interpreting graphs, evaluating setups, and solving problems involving electricity and magnetism.
You’ll see topics like:
- Electrostatics
- Electric fields and potential
- Capacitors and dielectrics
- DC circuits and Kirchhoff’s laws
- Magnetic fields and current-carrying wires
- Electromagnetic induction
Each question has four answer choices. There’s no penalty for guessing.
Section II – Free Response
- 4 questions
- 100 minutes
- 50% of your score
Free-response tasks:
- Question 1 – Mathematical routines. Multi-step derivation or calculation
- Question 2 – Translation between representations. Convert graphs, equations, or explanations
- Question 3 – Experimental design and analysis. Describe or interpret a physics lab setup
- Question 4 – Qualitative/quantitative translation. Justify predictions and explain results with diagrams or math
Each question tests a different skill. You’ll need to apply laws like Gauss’s law or Faraday’s law, perform derivations with calculus, interpret electric and magnetic field diagrams, and connect theory to physical behavior. Be sure to label all parts of your answers (a, b, c) clearly and show all your work.
You’re allowed to use a calculator on both sections of the exam, and you definitely should—most questions involve real computations.
How long is the AP Physics C: Electricity and Magnetism Exam?
The AP Physics C: Electricity and Magnetism exam lasts 3 hours. You’ll spend 80 minutes on the multiple-choice portion and 100 minutes on the free-response portion. That includes all the time you’ll need to complete every question, including written responses by hand.
In the multiple-choice section, you’ll have exactly 2 minutes per question. In the free-response section, time management becomes even more important. You should plan to spend about 25 minutes on each of the four questions. Some might feel faster or more familiar, but keeping a steady pace helps make sure you finish the entire section.
The key is balancing speed with accuracy. If you rush, you might miss a sign error or misread a graph. If you go too slow, you risk leaving a full question unanswered. Knowing how long to spend on each part helps you stay focused, manage stress, and avoid losing points on problems you’re actually capable of solving.
AP Physics C: Electricity and Magnetism Exam Questions
This section gathers representative AP Physics C: Electricity and Magnetism questions modeled on official material.
You’ll see a combination of multiple-choice and free-response items that span electrostatics, conductors and capacitors, DC circuits, magnetic fields, Ampere’s law, and induction. Each question is paired with a concise solution outline that highlights the underlying physics.
Multiple-Choice Questions
This question is from the official 2012 AP Physics C: Electricity and Magnetism Practice Exam, published by the College Board:
| 1. A proton moving along the positive x-axis enters an electric field that is directed along the positive y-axis. What is the direction of the electric force acting on the proton after it enters the electric field?
(A) Along the negative z-axis |
The correct answer is (D). The electric field is defined as the direction of the force that would act on a positive test charge placed in the field. Since the particle in question is a proton (which has a positive charge), the electric force it feels will point in the same direction as the electric field.
In this case, the electric field points along the positive y-axis, so the electric force on the proton also points along the positive y-axis. The motion of the proton along the x-axis does not affect the direction of the electric force. It simply determines the initial direction of motion, not the force due to the field.
Free-Response Questions
These questions come from the 2025 AP Physics C: Electricity and Magnetism Free-Response Questions released by the College Board.
FRQ 1: Mathematical routines
| 1. An isolated, air-filled, charged capacitor consists of two conducting, coaxial, cylindrical shells that each have length L. The inner shell has radius R₁ and the outer shell has radius R₂, as shown in Figure 1, where R₁ < R₂ ≪ L. The surface charge densities (amounts of charge per unit area) of the inner and outer shells are +σ₁ and –σ₂, respectively. The absolute values of the total charges on the shells are equal.
A. i. Using Gauss’s law, derive an expression for the magnitude E of the electric field as a function of the radial distance r from the center of the capacitor for the region R₁ < r < R₂. Express your answer in terms of R₁, σ₁, r, and physical constants, as appropriate. ii. Derive an expression for the absolute value |ΔV| of the potential difference between the outer and inner shells in terms of R₁, R₂, σ₁, and physical constants, as appropriate. Begin your derivation by writing a fundamental physics principle or an equation from the reference information. iii. On the axes shown in Figure 2, sketch a graph of E as a function of r from r = 0 to a position that is outside the outer shell.

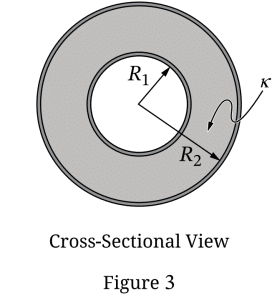

B. A material of dielectric constant κ is inserted into the isolated, charged capacitor such that the material fills the region R₁ < r < R₂, as shown in Figure 3.
Derive an expression for the capacitance C of the capacitor with the material inserted in terms of L, R₁, R₂, κ, and physical constants, as appropriate. Begin your derivation by writing a fundamental physics principle or an equation from the reference information. |
Here’s what a high-scoring response looks like for Question 1:
Part A. i – Deriving the magnitude using Gauss’s Law
To find the magnitude of the electric field E at a distance r from the center (where R₁ < r < R₂), we apply Gauss’s Law:
∮E · dA = q_enc / ε₀
Let’s use a cylindrical Gaussian surface of radius r and length L.
The charge enclosed by the Gaussian surface is:
q_enc = σ₁ × (2πR₁L)
Now apply Gauss’s Law:
E × (2πrL) = σ₁ × (2πR₁L) / ε₀
Solve for E:
E = (σ₁ × R₁) / (ε₀ × r)
Part A.ii – Deriving the potential difference
To find the absolute value of the potential difference |ΔV| between the outer and inner shells, we use:
|ΔV| = |∫ from R₁ to R₂ of E dr|
Substitute the expression for E:
|ΔV| = |∫ from R₁ to R₂ of (σ₁ × R₁) / (ε₀ × r) dr|
|ΔV| = (σ₁ × R₁ / ε₀) × ln(R₂ / R₁)

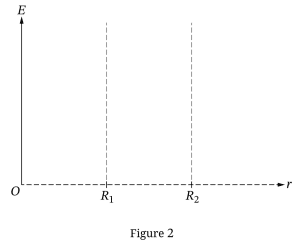

Part A.iii – Sketching E as a function of r
The electric field E as a function of r behaves as follows:
E = 0 for r < R₁ (inside the conductor)
For R₁ < r < R₂, E decreases with 1/r, following the expression:
E = (σ₁ × R₁) / (ε₀ × r)
E = 0 again for r > R₂ because the net enclosed charge is zero
A correct sketch shows a flat line at zero until R₁, then a smooth curve decreasing from R₁ to R₂, and another flat line at zero beyond R₂.
Let’s break down why this earns full credit:
- It starts from Gauss’s Law, a fundamental principle, and applies it correctly to a cylindrical shell
- All derivations are shown clearly with each physical quantity defined and justified
- The final expressions use only the allowed variables: R₁, R₂, σ₁, r, L, ε₀
- The graph is based on a correct understanding of field behavior inside and outside conductors
- There is no extraneous or incorrect reasoning
Altogether, this response demonstrates conceptual mastery, mathematical clarity, and good communication—exactly what AP scorers are looking for.
FRQ 2: Translation between representations

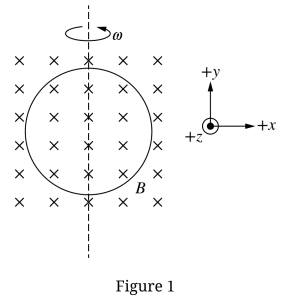

| 2. A rotating, circular, conducting loop of area A and resistance R is in an external uniform magnetic field of magnitude B that is directed in the –z direction. At time t = 0, the magnetic field is perpendicular to the plane of the loop, as shown in Figure 1. The loop is rotating with constant angular speed ω and period T about the dashed line that is along the diameter of the loop. The value of the magnetic flux through the loop as a function of time t is:
Φ = B × A × cos(ωt)

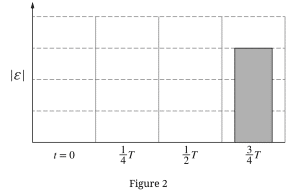

A. The absolute value of the induced emf in the loop is |ε|. The partially completed bar chart in Figure 2 shows a bar that represents |ε| at t = (3/4)T. In Figure 2, draw bars to represent |ε| at times t = 0, (1/4)T, and (1/2)T relative to |ε| shown at (3/4)T. If |ε| = 0, write a “0” in that column.
B. Derive an expression for the maximum induced current in the loop in terms of A, R, B, ω, and physical constants, as appropriate. Begin your derivation by writing a fundamental physics principle or an equation from the reference information. C. On the axes shown in Figure 3, sketch a graph of the instantaneous power P dissipated by the loop as a function of t during the time interval 0 ≤ t ≤ T.
D. Indicate whether the sketch you drew in part C is or is not consistent with the bars that you drew in part A. Briefly justify your answer by referencing the functional dependence between P and |ε|. |
Here’s what a high-scoring response looks like:
Part A: Induced EMF bar graph
To complete the bar graph of the absolute value of the induced emf |ε| at four time points (t = 0, T/4, T/2, and 3T/4), we use the equation:
Φ = B * A * cos(ωt)
⇒ ε = |dΦ/dt| = |B * A * ω * sin(ωt)|
We are given that |ε| is represented at t = 3T/4. Now we compute the rest:
- At t = 0, sin(ωt) = sin(0) = 0 → |ε| = 0
- At t = T/4, sin(ωt) = sin(π/2) = 1 → |ε| = B * A * ω (maximum)
- At t = T/2, sin(ωt) = sin(π) = 0 → |ε| = 0
- At t = 3T/4, sin(ωt) = sin(3π/2) = –1 → |ε| = B * A * ω
Bar heights (relative to max at 3T/4):
- t = 0: 0
- t = T/4: same height as 3T/4
- t = T/2: 0
- t = 3T/4: provided
Why this earns full credit:
The student correctly uses Faraday’s Law and applies trigonometric reasoning to calculate the relative emf magnitudes. All values are expressed in correct relation to the given bar at t = 3T/4.
Part B: Deriving the maximum induced current
To derive maximum current, we start with Ohm’s Law:
I = ε / R
From Part A:
ε = B * A * ω * sin(ωt)
⇒ Max ε = B * A * ω
So:
I_max = (B * A * ω) / R
Why this earns full credit:
The response starts from a fundamental principle (Ohm’s Law), correctly substitutes the expression for maximum emf, and simplifies cleanly to get the final result.

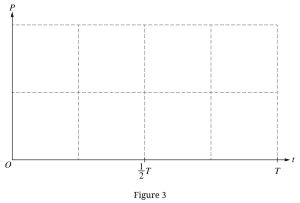

Part C: Sketching Instantaneous Power
The power dissipated by a resistor is given by:
P = I² * R
We already have:
I(t) = (B * A * ω * sin(ωt)) / R
⇒ P(t) = [(B * A * ω * sin(ωt))²] / R
⇒ P(t) = (B² * A² * ω² / R) * sin²(ωt)
So the graph of P(t) from 0 to T is a sin²(ωt) curve. It starts at 0, peaks at T/4, drops to 0 at T/2, peaks again at 3T/4, and ends at 0 at T.
Why this earns full credit:
The graph is correctly labeled and shaped. It displays two positive peaks at T/4 and 3T/4, with zero power at t = 0, T/2, and T, as expected from a sin²(ωt) behavior. The periodicity, symmetry, and peak placement all match the theoretical prediction for instantaneous power.
Part D: Consistency Check
The sketch in Part C is consistent with the bars in Part A. The emf varies with sin(ωt), while power varies with sin²(ωt). This means:
- When |ε| is zero, power is also zero
- When |ε| is at a maximum, power is at a maximum too
- The general shape and relative timing of peaks match
Why this earns full credit:
The explanation shows clear understanding of the relationship between power and emf, and directly references both Part A and Part C outputs.
FRQ 3: Experimental design and analysis
| 3. In Experiment 1, students are asked to use a graph to determine the resistivity ρ₁ of a circuit element that is connected to a variable power supply, as shown in Figure 1. The circuit element is cylindrical and has uniform resistivity. The students have access to a voltmeter, an ammeter, and a ruler.
A. Describe a procedure for collecting data that would allow the students to use a graph to determine ρ₁, including any steps necessary to reduce experimental uncertainty. B. Describe how the collected data could be graphed and how that graph would be analyzed to determine ρ₁. In Experiment 2, the students are asked to use a graph to determine the resistivity ρ₂ of solid, cylindrical resistors made of the same material but of different lengths L. The cross-sectional area of each resistor is 5.0 × 10⁻⁶ m². The students directly measure the resistance R between the ends of each resistor. Table 1 provides L and R for each resistor.
C. i. Indicate two quantities, either measured quantities from Table 1 or additional calculated quantities, that could be graphed to produce a straight line that could be used to determine ρ₂. ii. On the grid provided, create a graph of the quantities indicated in part C (i). • Use Table 2 to record the measured or calculated quantities that you will plot. • Clearly label the axes, including units as appropriate. • Plot the points you recorded in Table 2.
iii. Draw a best-fit line for the data graphed in part C (ii). D. Using the best-fit line that you drew in part C (iii), calculate an experimental value for ρ₂. |
Here’s what a high-scoring response looks like for Question 3:
Part A. Procedure to determine ρ₁

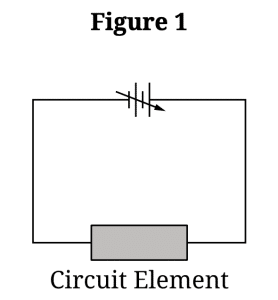

To determine ρ₁, connect the cylindrical circuit element to a variable power supply in series with an ammeter, and in parallel with a voltmeter, as shown in the diagram. Measure the length and cross-sectional area A of the element using a ruler and known geometry. Vary the voltage using the power supply and record the resulting current I and voltage V across the element multiple times. Use at least five different voltage values to reduce uncertainty and ensure reproducibility. Keep the element at constant temperature to minimize resistance fluctuations.
Why this scores highly:
- Clearly identifies the use of both ammeter and voltmeter.
- Refers to control of variables (temperature).
- Mentions varying the independent variable (voltage).
- Includes steps to reduce uncertainty (multiple trials, consistent temperature).
Part B. Graphing to determine ρ₁
Plot the measured voltage V on the vertical axis and the current I on the horizontal axis. The slope of the best-fit line represents the resistance R of the element. Using the formula ρ = R * A / L, calculate ρ₁ by substituting the measured resistance, cross-sectional area A, and length L.
Why this scores highly:
- Correctly identifies V-I graph with appropriate axes.
- Uses Ohm’s Law to relate slope to resistance.
- Applies the resistivity formula to link slope to ρ₁.
Part C(i). Choosing quantities for ρ₂ graph
Vertical axis: Resistance R (Ω)
Horizontal axis: Length L (m)
Why this scores highly:
- Identifies the correct linear relationship: R = ρ * L / A.
- Chooses quantities that, when graphed, yield a straight line with slope ρ / A.

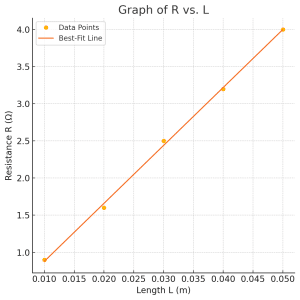

Part C(ii): Graph
All axis labels, units, and data points match the requirements for full credit.
Part C(iii): Best-fit line
The best-fit line was drawn through the data points with minimal deviation. The line shows a strong positive linear trend between R and L.
Why this earns full credit:
- It confirms a straight line was drawn.
- It describes that the line reflects the underlying linear relationship.
Part D: Calculate ρ₂
Using the slope of the best-fit line, which is approximately 60 Ω/m, and the cross-sectional area A = 5.0 × 10⁻⁶ m², calculate:
ρ₂ = slope × A = (60 Ω/m)(5.0 × 10⁻⁶ m²) = 3.0 × 10⁻⁴ Ω·m
Why this earns full credit:
- It uses the correct formula: ρ = R * A / L, with slope replacing R/L.
- The units are included and correct.
- It uses the provided area value and correctly calculates ρ₂.
FRQ 4: Qualitative/quantitative translation

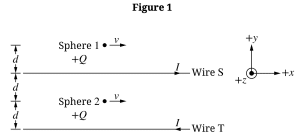

| 4. Long, parallel wires S and T are a distance 2𝑑 apart. Both wires carry equal currents 𝐼, but the currents are in opposite directions. Both wires are parallel to the x-axis. At the instant shown in Figure 1, Sphere 1 is a distance 𝑑 above Wire S, Sphere 2 is a distance 𝑑 below Wire S, and both spheres are moving with speed 𝑣 in the +𝑥-direction. Each sphere has positive charge +𝑄. Gravitational effects are negligible.
A. F₁ is the magnitude of the magnetic force exerted on Sphere 1 due to the currents in wires S and T. F₂ is the magnitude of the magnetic force exerted on Sphere 2 due to the currents in wires S and T.
Justify your answer. B. Derive an expression for the magnitude Bₜₒₜ of the magnetic field at the location of Sphere 2 due to the currents in wires S and T in terms of d, I, and physical constants, as appropriate. Begin your derivation by writing a fundamental physics principle or an equation from the reference information. C. Later, Wire T carries current 3I in the +x-direction. At the instant shown in Figure 2, Sphere 2 is a distance d below Wire S and is moving with speed v in the +x-direction. Fₙₑw is the new magnitude of the magnetic force exerted on Sphere 2 due to the currents in wires S and T.
Indicate whether Fₙₑw is greater than, less than, or equal to F₂ by writing one of the following.
Briefly justify your answer by referencing your derivation in part B. |
Here’s what a high-scoring response looks like:
Part A:
F₂ = F₁
Justification:
Both Sphere 1 and Sphere 2 are the same distance, d, away from Wire S, and also the same distance, d, away from Wire T, since the total vertical separation between the wires is 2d. Because the currents in the wires are equal in magnitude and opposite in direction, the magnetic field experienced by both spheres is the same in magnitude. Additionally, both spheres have the same charge +Q and velocity v in the +x-direction. Since the magnetic force on a moving charge is F = qvB sin(θ), and all variables are the same for both spheres, the magnitudes of the forces must be equal.
Why this earns full credit:
This response correctly identifies that the magnetic fields at both sphere locations are symmetric due to equal distances and equal but opposite currents. It also references the magnetic force equation and recognizes the symmetry in conditions for both spheres.
Part B:
To find the total magnetic field at the location of Sphere 2, we begin with the expression for the magnetic field due to a long, straight wire:
B = (μ₀I)/(2πr)
Let us calculate the magnetic field at Sphere 2 from both wires:
From Wire S (distance = d above Sphere 2):
The magnetic field due to Wire S at the location of Sphere 2 is
Bₛ = (μ₀I)/(2πd)
Using the right-hand rule, this field points into the page.
From Wire T (distance = d below Sphere 2):
The magnetic field due to Wire T is also
Bₜ = (μ₀I)/(2πd)
Because the current in Wire T is in the opposite direction, its field also points into the page at the position of Sphere 2.
Since both fields are in the same direction and have the same magnitude, they add:
B_total = Bₛ + Bₜ = (μ₀I)/(2πd) + (μ₀I)/(2πd) = (μ₀I)/(πd)
Why this earns full credit:
The student begins with a fundamental law, uses correct expressions for magnetic field from each wire, applies the right-hand rule correctly, and correctly adds the fields vectorially. The final boxed answer is in terms of the required variables.

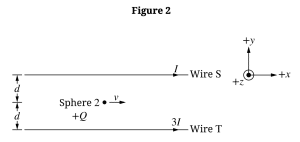

Part C:
F_new > F₂
Justification:
In this case, the current in Wire T is increased to 3I, while Wire S still carries current I. The magnetic field at Sphere 2 is the sum of the fields from both wires. From Part B, we know:
- Bₛ = (μ₀I)/(2πd) (still in the same direction as before)
- Bₜ = (μ₀ * 3I)/(2πd)
Since both magnetic fields still point into the page, they add to give:
B_total_new = Bₛ + Bₜ = (μ₀I)/(2πd) + (μ₀ * 3I)/(2πd) = (μ₀ * 4I)/(2πd) = (2μ₀I)/(πd)
This new total magnetic field is twice as large as the field in Part B. Since magnetic force is F = qvB, and q and v are unchanged, the new force is also twice as large, so:
F_new > F₂
Why this earns full credit:
The student correctly recalculates the new magnetic field by adjusting the current in Wire T, maintains correct use of direction and superposition, and directly connects the increase in field to an increase in magnetic force using the right equation.
These free-response questions reward clear reasoning, detailed derivations, and correct use of physics principles. Always explain your thought process, show every step of your math, and define your variables clearly. Even if you are unsure of the final result, a well-structured explanation can still earn partial credit.
For more help on FRQs, take time to explore real AP Physics C: Electricity and Magnetism student responses and official scoring guidelines from the College Board. Reviewing past answers can show you what earns points, what strong physics reasoning looks like, and how to avoid common errors.
How to Study for the AP Physics C: Electricity and Magnetism Exam
The AP Physics C: Electricity and Magnetism Exam tests your ability to apply calculus-based physics principles to electric and magnetic systems. You’ll be expected to analyze electric fields, circuits, Gauss’s law, Ampère’s law, and more—all with clear reasoning, mathematical justification, and the correct use of calculus.
To do well, you’ll need to focus on core physical laws, connect equations to field behavior and potential, and get comfortable explaining electrostatics, magnetostatics, and EM induction in depth.
Here are seven targeted strategies that actually work:
1. Review the AP Physics C: Electricity and Magnetism course outline.
The AP Physics C: Electricity and Magnetism Course and Exam Description (CED) gives you a clear breakdown of what’s tested. Focus especially on:
- Electrostatics (e.g., electric field, potential, and force)
- Conductors, capacitors, and dielectrics
- Electric circuits (especially RC circuits)
- Magnetic fields (produced by currents)
- Electromagnetism (Faraday’s and Ampère’s laws)
The CED also includes constants and formulas you’ll have on the exam. Learn how and when to use them.
2. Use and analyze practice tests.
Practice tests will help you identify what types of derivations, graphs, and calculations show up most often, especially FRQs involving fields, potential, and energy.
After each test:
- Find your blind spots. Having trouble with Gauss’s Law? Or with deriving magnetic field expressions from Ampère’s Law? Target those.
- Rework problems. For derivations, focus on setup and justification, not just the final answer.
- Review FRQ scoring rubrics. You’ll see how points are earned for setups, calculus, and explanations.
- Master timing. You’ll have 45 minutes for 3 FRQs, so practice pacing.
3. Know your equations (and when to use them).
The exam includes a formula sheet, but using it well requires understanding.
Focus on:
- Gauss’s Law for symmetrical charge distributions.
- Ampère’s Law and Biot–Savart Law for magnetic fields.
- Capacitance and RC circuits—derive energy stored in capacitors, and solve differential equations for voltage/current in RC circuits.
- Faraday’s Law and Lenz’s Law for induction questions.
You should also:
- Know what each symbol means. For example, ε₀, μ₀, V, E, Φ, and ∮.
- Convert units quickly. Especially when dealing with current, charge, and field strength.
- Understand vector directions. Many problems require applying the right-hand rule.
4. Practice explaining your reasoning with physics laws.
In FRQs, the College Board wants to see how well you justify your physics.
- Use Gauss’s or Ampère’s Law properly. Be able to derive E or B step by step.
- Use complete sentences. Say, “The electric field is zero inside the conductor because net enclosed charge is zero,” not just “E = 0.”
- State assumptions clearly. For example, “Assume the shell is a perfect conductor.”
- Label your diagrams. Especially for flux or field lines.
- Box your final answer and include units.
5. Study with diagrams, graphs, and setups.
Many FRQs and MCQs involve electric/magnetic field diagrams, flux, and circuit analysis.
To prep:
- Draw field lines and equipotential maps. Be able to sketch fields around point charges, dipoles, and conductors.
- Interpret graphs. Voltage vs. time for an RC circuit? Flux vs. time for an EMF question? Learn to extract slope, area, and derivatives.
- Label currents and directions. Especially for multi-loop or induced current setups.
6. Build conceptual depth.
Electricity and Magnetism is a challenging subject that requires more than memorization. Focus on understanding the underlying concepts.
Some key habits:
- Explain induction. If you can’t explain why a changing B-field creates an EMF, review it again.
- Visualize scenarios. What happens inside a capacitor when the dielectric is inserted?
- Relate math to concepts. For instance, what does the integral form of Gauss’s Law mean in physical terms?
8. Use solid third-party resources.
High-quality resources can help break down difficult AP Physics C: Electricity and Magnetism concepts, offer visual explanations, and give you extra practice on derivations, problem sets, and lab-style questions. Consistency matters most, so focus on using a few resources well instead of trying to use everything at once.
Top resources for AP Physics C: Electricity and Magnetism include:
Pick one or two of these and return to them regularly throughout your study schedule. These resources are most effective when you combine them with hands-on problem solving and the official CED.
AP Physics C: Electricity and Magnetism Exam Test-Taking Tips
You might know the formulas and concepts, but how you approach the exam itself can make all the difference. Many students lose points not from a lack of content knowledge, but from small mistakes like misreading field directions, forgetting negative signs, or skipping steps in their explanations.
Use these strategies to walk into your AP Physics C: Electricity and Magnetism exam with confidence:
1. Skim the questions before solving.
Before jumping in, take a quick scan of both the multiple-choice and free-response sections. This helps you spot which topics show up, how parts of a question are connected, and what information is reused.
For example, if part (a) asks for the electric field and part (b) builds on that to find the force on a charge, knowing that ahead of time lets you plan your approach. In multiple-choice, if a problem seems long or tricky, skip it and come back with a fresh perspective.
2. Keep your units and directions consistent.
Electricity and Magnetism problems are filled with vector directions and unit conversions. Mistakes here can lose you points even if your setup is correct.
- Watch out for directions on electric fields, currents, and forces. Check your coordinate system and label vectors clearly.
- Be consistent with unit systems. If a problem gives microcoulombs and millimeters, convert early so you don’t carry errors into your calculations.
- Always double-check that your final units make sense. If you’re solving for potential difference, the answer should be in volts.
3. Draw and label all diagrams.
Many Electricity and Magnetism problems are easier to solve visually. Diagrams help you process the setup and communicate your thinking.
- Sketch field lines, direction of currents, or equipotential surfaces if they are relevant to the problem.
- Mark distances, angles, and charge signs clearly. Label the direction of the electric or magnetic field if the problem gives it.
- Diagrams can earn you partial credit even if your math has an error, especially in free-response questions.
4. Write your reasoning step by step.
On the FRQs, showing your logic is just as important as getting the right answer.
- If you’re solving for electric potential, start by referencing the integral or equation you’re using and explain your limits of integration.
- When applying Ampère’s Law or Gauss’s Law, state why the law applies and what symmetry you are using.
- Be explicit about assumptions. For example, say “The magnetic field inside a long solenoid is uniform,” rather than assuming the grader will infer it.
5. Eliminate wrong answers with physics.
In multiple-choice, use what you know to rule out incorrect options, even if you are unsure of the full solution.
- Eliminate choices that violate conservation laws, like incorrect signs for electric potential changes.
- Avoid answers with wrong field directions. For example, if a charge is near a negative plate, the electric field should point toward the plate.
- Check units. If you are solving for capacitance, eliminate answers that do not reduce to farads.
6. Use exact part labels in FRQs.
Each part (a), (b), (c), and so on is graded separately. Make it easy for the grader to find your answers.
- Label each section clearly. If you need to refer back to a previous part, state it explicitly.
- Show substitutions and calculations clearly. Use enough spacing so your work is not crammed.
- Circle your final answer for each part and make sure it includes correct units.
7. Save a few minutes to review your work.
Use the full 90 minutes wisely. If you finish early, do not submit right away. Use the time to go back and catch small mistakes that can cost you points.
Before turning in your test, ask yourself:
- Did I answer every part of every free-response question?
- Are my answers labeled and boxed?
- Did I miss a sign, a unit, or an algebra step?
- Are there any inconsistent directions in my diagrams or work?
Even top students miss points for mistakes like forgetting a negative sign on the electric field or switching the direction of current. One last review can make the difference.
AP Physics C: Electricity and Magnetism Exam Date
The 2026 AP Physics C: Electricity and Magnetism Exam is scheduled for Thursday, May 14, 2026, at 12:00 PM (local time). Be sure to arrive at your testing location early. Most schools require students to check in by 11:30 AM or earlier. You cannot take this exam at a different time unless your school arranges an official makeup session.
To check dates for other AP exams and registration info, visit our comprehensive guide.
AP Physics C: Electricity and Magnetism Exam score release date
For 2026, AP Physics C: Electricity and Magnetism Exam scores are expected to be released in early to mid-July. For 2025, scores came out on July 7.
While the exact release date has not been confirmed yet, students will likely be able to view their Subject Score Reports through their College Board account starting in early July. Make sure to log in regularly during that time so you do not miss your scores.
Is the AP Physics C: Electricity and Magnetism Exam Hard?
AP Physics C: Electricity and Magnetism is a calculus-based course that focuses on electrostatics, circuits, magnetic fields, and electromagnetic induction. It’s one of the most conceptually and mathematically intense AP science exams. You will be expected to apply Maxwell’s equations, analyze field behavior, and derive relationships using calculus.
To give you an idea of how it compares in difficulty, here’s the official 2024 score breakdown:
| Score | Percentage of Students |
| 5 | 35.2% |
| 4 | 21.6% |
| 3 | 14.8% |
| 2 | 17.4% |
| 1 | 11% |
| Total Passing (3+) | 71.6% |
In 2024, 71.6% of students earned a score of 3 or higher on the AP Physics C: Electricity and Magnetism Exam. That’s a strong pass rate, with over a third of test-takers scoring a perfect 5. The average score was 3.53 out of 5 across 27,967 students.
This suggests that although the course is rigorous, students who are confident with vector calculus and deeply understand electric and magnetic field behavior tend to do well.
However, the test is still very challenging. You will be solving multi-part problems that involve deriving equations, analyzing systems with multiple charges or currents, and justifying your steps with proper physical reasoning. To succeed, you need a solid foundation in both physics and calculus, plus plenty of timed practice with real exam questions.
If you’re looking for guided support, check out our AP tutorial services. We offer coaching on derivation strategies, FRQ techniques, and advanced content review designed specifically for AP Physics C: Electricity and Magnetism.
Frequently Asked Questions
1. How hard is the AP Physics C: Electricity and Magnetism Exam?
In 2024, about 71.6% of students earned a score of 3 or higher on the AP Physics C: Electricity and Magnetism Exam, and 35.2% scored a 5. That’s one of the highest rates of perfect scores among AP STEM exams, but it still requires strong problem-solving skills and a deep understanding of Electricity and Magnetism topics.
Compared to other AP Physics exams, AP Physics C: Electricity and Magnetism is more abstract and math-intensive. While AP Physics 1 focuses on conceptual understanding and AP Physics 2 expands into fluid dynamics and thermodynamics, this course gets into advanced topics like electric fields, Gauss’s Law, circuits, and Maxwell’s equations.
2. How many hours should you study for the AP Physics C: Electricity and Magnetism Exam?
It depends on how comfortable you are with physics and calculus. Most students spend 80 to 120 hours preparing. If you’re aiming for a score of 4 or 5, try to study about 4 to 6 hours each week over a span of 2 to 3 months.
Focus your time on solving Electricity and Magnetism-specific problems, reviewing theorems like Gauss’s Law and Faraday’s Law, and practicing how to justify your steps clearly using calculus and correct units.
3. Do you need to memorize everything for the AP Physics C: Electricity and Magnetism Exam?
No. You will receive an equation sheet during the exam. But you need to know when to use each formula, how to derive relationships when needed, and how to apply them correctly. Work on interpreting field line diagrams, setting up integrals, and using symmetry and calculus to solve E&M problems. Understanding the concepts is far more important than memorization.
4. Is AP Physics C: Electricity and Magnetism worth taking?
If you’re planning to major in physics, electrical engineering, or any field that deals with electromagnetism, this course is incredibly valuable. It mirrors the second-semester Electricity and Magnetism course in most college physics sequences, and many colleges offer credit for it.
Even if you’re not entering a physics-heavy major, you’ll gain skills in logical reasoning, vector analysis, and applying calculus to real-world systems. These are useful in a broad range of careers.
5. When do AP Physics C: Electricity and Magnetism scores come out?
For 2026, AP Physics C: Electricity and Magnetism scores will likely be released in early to mid-July, just like other AP exams. While the exact date hasn’t been confirmed, students will probably be able to view their scores through their College Board account starting in early July. Keep checking around that time so you don’t miss your results.
Takeaways
To ace the AP Physics C: Electricity and Magnetism Exam, you need to understand how to use formulas in new situations while staying calm under time pressure. Here’s what really matters:
- The AP Physics C: Electricity and Magnetism Exam is both concept-heavy and calculus-based. You’ll work with electric fields, magnetic flux, and circuit analysis. Focus on understanding the logic behind each equation.
- Time management is everything. You only get 90 minutes for both sections, so work quickly, but stay accurate. Do not let one hard question throw off your entire pace.
- The free-response section rewards clarity. Label each part of your solution and show your reasoning. You can still earn credit even with small math slips if your process is correct.
- Details make or break your score. Watch out for unit errors, incorrect signs, or wrong current directions. Slow down just enough to check your final answers before moving on.
- If you want expert support for the AP Physics C: Electricity and Magnetism Exam, a college admissions consultant can help. AdmissionSight provides targeted coaching to strengthen your problem-solving skills, improve your FRQ strategy, and build confidence for test day.
Eric Eng
About the author
Eric Eng, the Founder and CEO of AdmissionSight, graduated with a BA from Princeton University and has one of the highest track records in the industry of placing students into Ivy League schools and top 10 universities. He has been featured on the US News & World Report for his insights on college admissions.
Recent Posts
Related Posts
